Rotary lobe pumps are widely used in various industries for their efficient and reliable fluid transfer capabilities. In this article, we will delve into the working principle of a rotary lobe pump, shedding light on the mechanism that enables its smooth and effective operation.

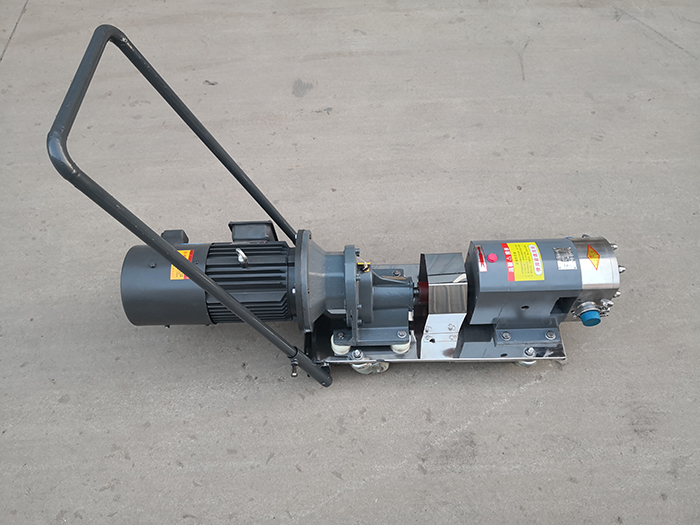

A rotary lobe pump consists of two rotating lobes enclosed within a casing. These lobes are typically made of stainless steel or other durable materials to withstand the demands of industrial applications. The lobes have unique profiles that interlock with each other, creating a sealed chamber within the pump.
1. Priming and Suction:
The pumping process begins when the pump is primed and ready for operation. As the lobes rotate, they create a vacuum within the pump chamber, causing the fluid to be drawn into the inlet port. This suction action is crucial for initiating the fluid transfer process.
2. Fluid Entrapment and Displacement:
As the lobes continue to rotate, the fluid is trapped within the chamber between the lobes and the pump casing. The lobes interlock, creating a seal that prevents the fluid from flowing back to the inlet side. As the lobes rotate further, the trapped fluid is carried around the chamber, gradually displacing it towards the outlet port.
3. Fluid Transfer:
The fluid transfer process is facilitated by the rotation of the lobes. The lobes act as positive displacement elements, meaning they create a fixed volume of fluid within the chamber with each rotation. This displacement ensures a consistent and continuous flow of fluid, regardless of the pressure or viscosity of the substance being pumped.
4. Outlet Discharge:
As the fluid reaches the outlet port, it is forced out of the pump and into the desired destination. The outlet pressure can be adjusted by controlling the speed of the pump or by incorporating additional valves or pressure regulators.
5. Sealing and Lubrication:
To ensure efficient operation and prevent leakage, rotary lobe pumps are equipped with seals or gaskets at various points, such as between the lobes and the casing. These seals maintain a tight seal, preventing the fluid from bypassing the lobes and ensuring that it is directed towards the discharge port. Proper lubrication is also essential to minimize friction and wear between the rotating lobes and the pump casing, ensuring smooth and reliable operation.
In conclusion, a rotary lobe pump operates by utilizing the interlocking rotation of two lobes to create a sealed chamber for fluid transfer. The suction, fluid entrapment, displacement, and outlet discharge processes work together to ensure a consistent and efficient flow of fluids. Understanding the working principle of a rotary lobe pump is crucial for selecting the right pump for specific applications and for optimizing its performance in various industries.
