How do RY Hot Oil Pumps Achieve Stable Operation in Hot Oil Circulation Systems?
2026-03-18 16:27:40
Read:
Share:

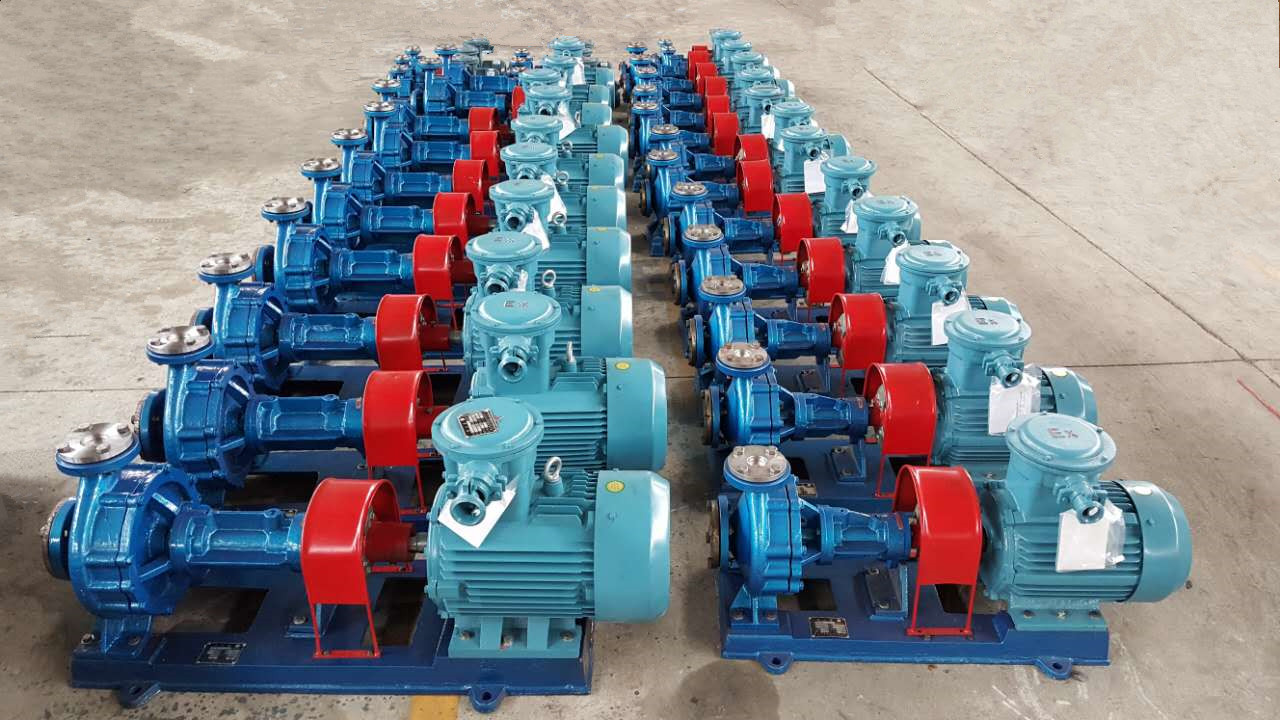

RY series thermal oil pump is specifically designed for high-temperature thermal oil circulation applications, featuring a high-temperature-resistant construction, a self-cooling system, and reliable sealing performance. It ensures continuous and stable operation in high-temperature thermal oil circulation systems, addressing the issues associated with traditional high-temperature pumps, such as complex design, high failure rates, and difficult maintenance.
The key to this equipment’s ability to operate stably in thermal circulation systems without additional cooling lies in its self-cooling design, which replaces traditional water-cooled configurations. Moreover, it features a single-stage, single-suction, cantilevered design, with the motor and pump housing mounted on a single base. Its axial suction and vertical discharge configuration is particularly well-suited to the typical fluid resistance and flow direction found in hot oil circulation systems. This eliminates the need for additional cooling lines, ensuring long-term, stable operation under high-temperature conditions through structural design and natural air cooling alone.
To ensure that the RY high-temperature oil pump maintains sufficient strength and corrosion resistance under high-temperature operating conditions, its flow-through components are made of specially designed heat-resistant and high-temperature-resistant materials, which do not undergo thermal deformation, creep, or corrosion even during long-term operation at high temperatures. This ensures the mechanical strength and dimensional stability of the pump body, thereby preventing operational failures caused by material failure. The pump’s self-cooling design replaces traditional water-cooling technology with air cooling by optimizing the flow channels and heat dissipation area of the pump body to directly dissipate heat generated during operation through components such as the pump casing and bearing housing, eliminating the need for an external cooling water circulation system, and effectively preventing issues such as medium solidification and seal failure caused by insufficient cooling.
This pump employs a combination of mechanical and packing seals designed for high-temperature applications, along with high-temperature sealing components, to ensure excellent lubrication and sealing performance even in high-temperature environments. This effectively prevents media leakage and the ingress of outside air, avoids seal failure due to high-temperature aging, and maintains long-term sealing performance without the need for cooling. The impeller and flow passages have been professionally designed using fluid dynamics principles and are highly optimized for the characteristics of high-temperature hot oil media to minimize flow resistance and energy loss while preventing localized overheating.This enables the pump to meet the requirements for pressure, flow rate, and temperature stability in hot oil circulation systems without the need for additional cooling, making it widely applicable in industries such as chemicals, petroleum, textiles, rubber, and plastics. RY series centrifugal oil pump ensures stable operation in hot oil circulation systems without the need for additional cooling, enhancing not only the system’s pumping efficiency but also improving the safety and reliability of the hot oil circulation system to a certain extent, thereby providing efficient and reliable power support for high-temperature pumping applications.
