3RP Series Lobe Pump for Sale
3RP Series Lobe Pump for Sale
Electric Motor Liquid Lobe Pump
3RP series rotary lobe pump is a positive displacement pump with reliable seals, excellent self-priming capability and long service life, specially designed to handle corrosive media containing solid particles and media in suspension. Whether it is the food and beverage industry, or the pharmaceutical and cosmetic industries, the pump can meet the requirements of their media sanitary grade.
Flow Rate: 6-250m3/h
Viscosity: 1-2000000cp
Power: 0.75-22Kw
Product Description
Summarize:

3RP series industrial lobe pump is a positive displacement pump for handling high viscosity sanitary fluids and corrosive high viscosity fluids, and can convey gas, liquid, and solid phase mixtures. In order to ensure the safety and hygiene of the medium, the internal parts of the pump in contact with the medium are made of corrosion-resistant stainless steel, so it can be broadly employed in the food, beverage, dairy, pharmaceutical, chemical and processing industries.

Product Details:
3RP series industiral rotary lobe pump is mainly composed of rotor, shaft seal, gear box, a pair of synchronous meshing of the active gear, driving the rotor to transport media. This equipment is gear-driven, due to the main shaft and auxiliary shaft driven rotor synchronous reverse rotation, so that the pump volume changes, thus forming a higher vacuum and discharge pressure, so it is particularly suitable for sanitary media and strong corrosive high-viscosity media. Furthermore, the pump utilizes a high-strength cast iron gearbox, helical gears and heavy-duty bearings to ensure long-term pump operation.
Application:

1. Food: Tomato sauce, vegetable paste, seasoning, sweeteners, yeast paste, salad, meat emulsion, edible oil.
2. Candy: Honey, syrup, cream stuffing, fruit puree, fruit filling, pudding, jam, jelly, chocolate.
3. Beverages: Beer, wort, yeast, soft drinks, fruit concentrates, fruit drinks.
4. Cosmetics: Creams and lotions, hair gels, hair dyes, essential oils.
5. Dairy products: Yogurt, cream, ice cream, cheese and whey.
6. Chemicals: Fats, solvents, resins and polymers, dyes.

7. Drugs: Pill, extract, emulsion, paste.

Advantage:
1. Convenient maintenance: Its has the features of simple assembly and disassembly, easy maintenance, cleaning, less wearing parts. Adjustable flow rate: the output flow rate of the pump can be changed by adjusting the rotational speed of the main shaft, and it can be used as a general metering pump.
2. Long service life: The rotor and rotor, rotor and pump body to maintain a certain gap between the rotor, no contact without friction, long service life.
3. Various connection methods: The flange type, screw type, clamp type and other types of connection methods can be selected.
4. High efficiency & energy saving: high efficiency and energy saving, low failure rate, reliable sealing, low noise.

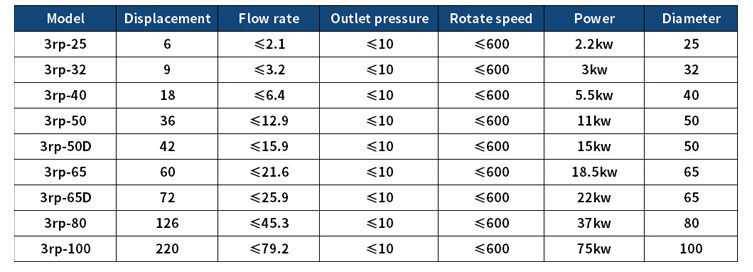

Performance Data:

Model

Flow

(L/100r)

Pressure

(bar)

Inlet/outlet Size
(mm)

Rev
(r/min)

Medium Viscosity

(cp)

3RP-25

6

≤10

25

≤600

 1-2000000

3RP-32

9

≤10

32

3RP-40

18

≤10

40

3RP-50

36

≤10

50

3RP-65

60

≤10

65

3RP-80

105

≤10

80

3RP-100A

125

≤10

100

3RP-100

150

≤10

100

3RP-125 250 ≤10 125
