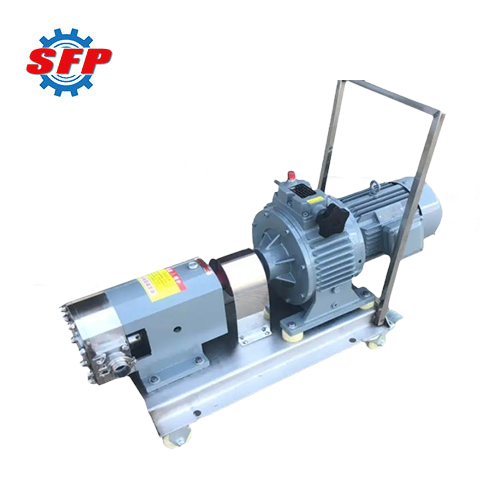

Widely Use 3RP Movable Stainless Steel Sanitary Lobe Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

LPG Gas Transfer Pump for Sale

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

ISW Series Horizontal Centrifugal Water Pump

ISW Series Inline Centrifugal Pump

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

3RP series food grade lobe pump is a positive displacement pump that can handle suspension, corrosive media, and suspensions suitable for soft solid particles, conveying media with temperature range of -30~130 ℃ and viscosity range of 30 cst~1.0×105 cst. To ensure the corrosion resistance and hygiene of the liquid, the internal parts of this pump in contact with the media are all made of durable stainless steel. Therefore, it is widely used in food, beverage, pharmaceutical, chemical, daily chemical, petroleum and other processing industries.

Product Details:

3RP series food grade lobe pump is mainly composed of rotor, shaft seal, gear box, a pair of synchronous meshing of the active gear, driving the rotor to transport media. The machine relies on two synchronously rotating rotors, the rotor in the process of rotation at the inlet to generate suction, so that the conveyed material will be inhaled, the two rotors will rotor cavity into different spaces, and then run in turn to transport the media to the discharge port, and so on and so forth, the conveyed material will be transported out continuously. In addition, the pump utilizes a high-strength cast iron gearbox, helical gears and heavy-duty bearings to ensure long-term pump operation.

Application:

1. Daily chemical industry: Facial cleanser, hand soap, shower gel, laundry detergent, skin care products, toothpaste, shampoo, cosmetics, soap, etc. 3 pharmaceutical industry: for a variety of dairy products, such as milk, milk, milk, milk, milk, milk, milk, milk, milk, milk, milk, milk and milk.
2. Food industry: Including sour milk, whipped cream, ice cream, cheese, whey, beer, wort, yeast, jam, syrup, juice, pudding, ketchup, sesame sauce, condiments, edible oil, etc.
3. Chemical industry: Solvents, polymers, paints, pigments, dyes, lubricants,, petroleum agents, adhesives, plastics, fiberglass reinforced plastics, leather and so on.
4. Pharmaceutical industry: Used in a variety of emulsifiers, syrups, nutrient solutions, cream medicines, biological products, and so on.
5. Construction industry: Interior and exterior wall coatings, anti-corrosion materials, ceramic coatings, paints and coatings, ceramic glazes, etc.

Feature:

1. This pump adopts high-quality sealing materials and advanced sealing technology to ensure the sealing of the pump when conveying various media.
2. It is characterized by smooth running and low noise, which can create a quiet working environment.
3. It can convey materials with poor fluidity such as high viscosity and high concentration. It can also convey gas, liquid and solid three-phase mixture materials, with a wide range of conveying.

Performance Data:

Model	Flow		Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/outlet (mm)
Model	L/100r	m3/h	Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/outlet (mm)
3RP-25	6	≤1.8	0-1.0	10-400	0.75	25
3RP-32	9	≤2.7			1.1	32
3RP-40	18	≤4.3			1.5	40
3RP-50	36	≤8.6			2.2	50
3RP-65	60	≤14.4			4	65
3RP-80	105	≤25.2			11	80
3RP-100A	125	≤30			15	100
3RP-100	150	≤36			18.5	100
3RP-125	250	≤60			22	125
