Summarize:

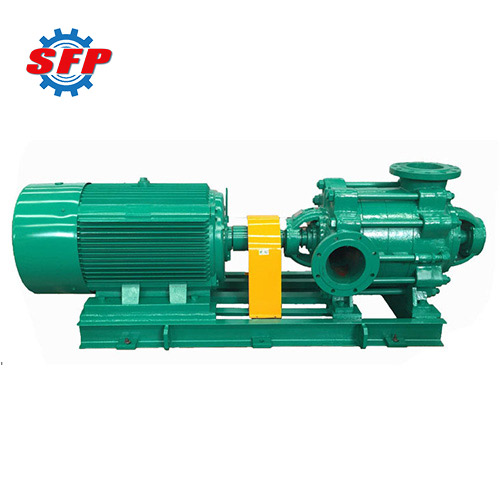

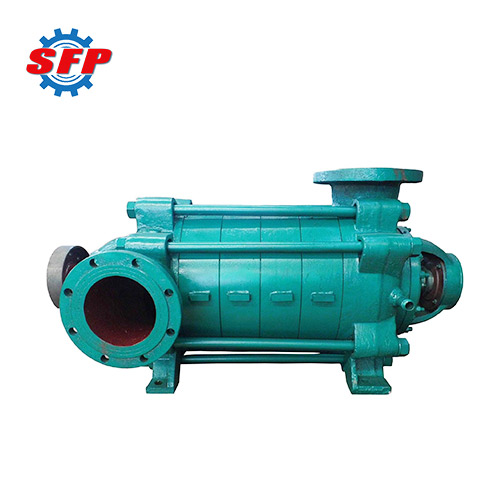

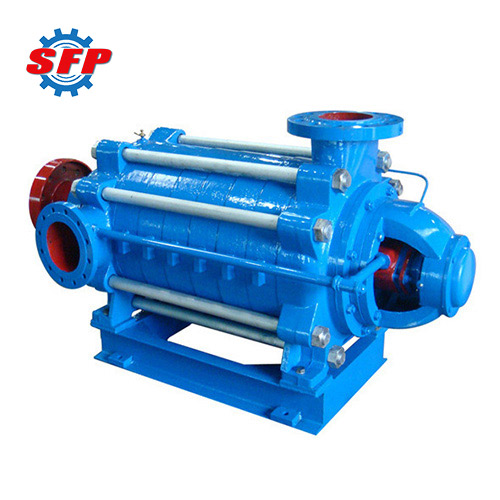

D Type Horizontal Multi-Stage Centrifugal Pump is a single-suction multi-stage segmented centrifugal pump, which is used to transport clean water or other liquids with physical and chemical properties similar to water. The temperature of the liquid should not exceed 80°C. It has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, and convenient installation and maintenance. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material and sealing form of the pump's flow-through components and adding a cooling system.
Model meaning of D-type horizontal multi-stage centrifugal pump:
For example: 80D-12x6
80- suction port diameter (mm)
D-single suction multistage segmented centrifugal pump
12-single-stage head (m)
6- the number of impellers
Generally Used In:
D Horizontal Multistage Centrifugal Water Pump is mainly used for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance water supply, heating, bathroom and other cold and warm water circulation pressurization and equipment matching, etc., especially suitable for small Boiler feed water.
Advantage:
1. Advanced hydraulic model, high efficiency and wide performance range.
2. The pump runs smoothly and has low noise.
3. The shaft seal adopts soft packing seal or mechanical seal, the seal is safe and reliable, the structure is simple, and the maintenance is convenient and quick.
4. The shaft is a fully enclosed structure, which ensures that it does not contact the medium, does not rust, and has a long service life.
Model:
| D/DG/DF/MD(P)6-25 |
D/DG/DF/MD(P)6-50 |
D/DG/DF/MD(P)6-80 |
D/DG/DF/MD(P)12-25 |
| D/DG/DF/MD(P)12-50 |
D/DG/DF/MD(P)12-80 |
D/DG/DF/MD(P)25-30 |
D/DG/DF/MD(P)25-50 |
| D/DG/DF/MD(P)25-80 |
D/DG/DF/MD(P)46-30 |
D/DG/DF/MD(P)46-50 |
D/DG/DF/MD(P)46-80 |
| D/DG/DF/MD(P)85-45 |
D/DG/DF/MD(P)85-67 |
D/DG/DF/MD(P)85-80 |
D/DG/DF/MD(P)85-100 |
| D/DG/DF/MD(P)120-50 |
D/DG/DF/MD(P)120-100 |
D/DG/DF/MD(P)150-30 |
D/DG/DF/MD(P)150-50 |
| D/DG/DF/MD(P)150-80 |
D/DG/DF/MD(P)150-100 |
D/DG/DF/MD(P)155-30 |
D/DG/DF/MD(P)155-67 |
| D/DG/DF/MD(P)200-50 |
D/DG/DF/MD(P)200-100 |
D/DG/DF/MD(P)200-150 |
D/DG/DF/MD(P)210-70 |
| D/DG/DF/MD(P)280-43 |
D/DG/DF/MD(P)280-65 |
D/DG/DF/MD(P)280-95 |
D/DG/DF/MD(P)280-100 |
| D/DG/DF/MD(P)300-45 |
D/DG/DF/MD(P)360-40 |
D/DG/DF/MD(P)360-60 |
D/DG/DF/MD(P)360-95 |
| D/DG/DF/MD(P)450-60 |
D/DG/DF/MD(P)450-95 |
D/DG/DF/MD(P)500-57 |
D/DG/DF/MD(P)550-50 |
| D/DG/DF/MD(P)580-60 |
D/DG/DF/MD(P)640-80 |
D/DG/DF/MD(P)720-60 |
D/DG/DF/MD(P)1100-85 |
Parameter Data:
| Flow rate: |
3.7-1350m3/h |
| Head: |
49-1800m |
| Speed: |
1450-2950r/min |
| Caliber: |
φ50-φ200 |
| Motor power: |
3-1120kw |
| Temperature range: |
≤105℃ |
| Working pressure: |
≤3.0Mpa |
