SHHLB Series Internal Gear Pump for Sale
SHHLB Series Internal Gear Pump for Sale
SHHLB Bitumen Internal Gear Pump
SHHLB internal rotary gear pump belongs to a new positive displacement pump for conveying a variety of mediums with different properties and viscosity. It is designed for petroleum, chemical, paint, grease, pharmacy, foodstuff and other fields.
Temperature: -10℃~200℃
Viscosity: 1.0cst~300000cSt
Email: sales@shenghuipump.com
Product Description
Summarize:

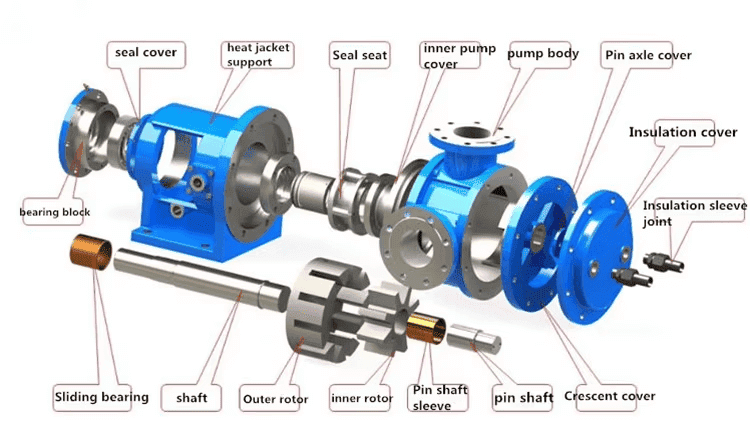

SHHLB bitumen internal gear pump is mainly composed of inner rotor, outer rotor, shaft, pump body, front cover, bracket, seal, bearing and so on. The pump seal adopts packing seal or mechanical seal, when the conveying medium is high temperature, high viscosity or strong corrosive medium, packing seal is adopted. When the conveying medium is easy to crystallize, an insulation jacket can be designed inside the pump body and front cover so that the medium can be melted by steam during operation. The pump can also be equipped with a safety valve. The pump unit consists of pump, motor and base plate.


Product Details:





Application:
It is a kind of new positive displacement pump that's designed according to the different fields requirements of petroleum, chemical industry, paint, grease, pharmacy, foodstuff, and so on. It's widely applied to pumping a variety of mediums with different properties and viscosity because of special structure and selected different pump materials.



Feature:
1. Steady delivery without pulsation, little vibration and low noise.
2. Outstanding self-priming ability.
3. If selecting proper parts material, the pump can deliver a variety of corrosive mediums and the working temperature can reach 300℃.
4. The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
5. The pump's flow capacity can be changed through adjusting the speed.
6. It's suited to deliver high viscosity mediums very much.


Product Configuration:
Model Number SHHLB
Power 1-150kW
Outlet Size 1-8inch
Material Ductile Iron
Voltage 220V/380V or Customized
Medium Viscosity 1.0cSt--300 000cSt
Motor AC Power Electric Motor
