WQ Series Centrifugal Pump for Sale
WQ Series Centrifugal Pump for Sale

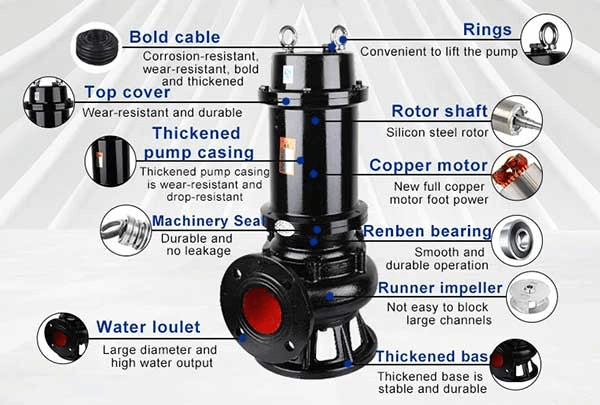

WQ Submersible Centrifugal Pump
WQ series submersible centrifugal pumps are applicable for handling waste, sewage, rainwater, clean water, and corrosive media containing solid particles and corrosive substances. They are commonly used in industrial buildings, hotels, civil defense projects, municipal engineering, environmental protection, and mining. In addition, these pumps feature anti-wrapping, significant energy savings, no blockages, efficient operation, automatic control, and stable performance.
Head: 6-60m
Power: 0.75-280kW
Flow Rate: 8~10000m³/h
Product Description
Summarize:


WQ series vertical centrifugal pump is a new generation of pump products developed on the basis of introducing foreign advanced technology and combining with the use characteristics of domestic pumps. It is commonly used in mines, hotels, municipal engineering, construction sites, farmland, municipal and other industries to deal with sewage and dirt with particles, clear water and corrosive media. Moreover, the product adopts the design of special large channel, which greatly improves the drainage capacity, so that it can pass the solid particles whose diameter is about 50% of the pump caliber.

Product Details:
The impeller of WQ series submersible sewage pump rotates at high speed driven by the motor, and the blades in the impeller drive the liquid to rotate and generate centrifugal force. Under the action of centrifugal force, the liquid is thrown from the center of the impeller to the edge of the impeller, so as to obtain energy and increase the pressure and speed.

Application:
WQ submesible centrifugal pumps are widely used in sewage treatment plants, subways, basements, human defense system drainage stations, factories, hospitals, sewage discharge in residential areas, municipal engineering, construction sites, farms, rural farmland irrigation, water supply plants, mining exploration and control and water treatment equipment supporting, water conservancy projects and other fields.
Advantage:

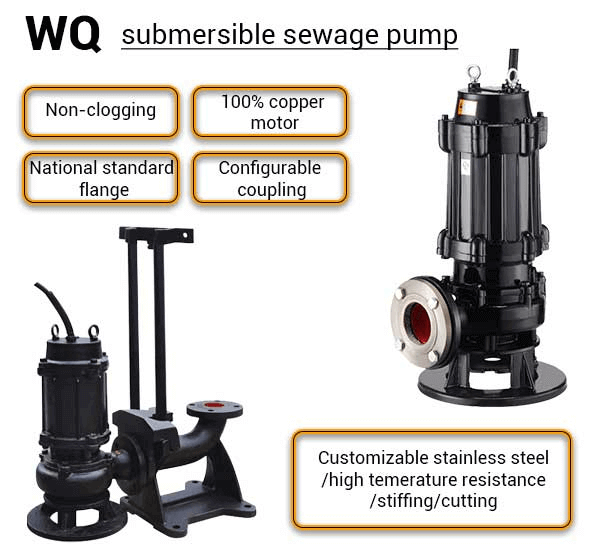

1. This machine can be equipped with double-rail auto-coupling mounting system according to user's need, which brings more convenience for installation and maintenance, and users don't need to enter the sewage pit for this purpose.
2. Automatic control cabinet can be equipped according to user's needs, automatic protection of the pump's water leakage, leakage of electricity, overload, over-temperature, etc., to improve product reliability.
3. It has the advantages of compact structure, small volume, low noise, remarkable energy-saving effect, convenient maintenance, no need to build pump house, can work underwater, etc.
4. The mechanical seal of the pump adopts hard and corrosion-resistant new titanium tungsten material, which can make the pump run continuously for more than 8000 hours.
Performance Data:
Model Outlet Capacity Head Speed Power Efficiency
(mm) (m³/h) (m) (r/min) (KW) (%)
25WQ7-8-0.55 25 7 8 2900 0.55 45
25WQ8-25-1.1 25 8 25 2900 1.1 45
32WQ8-12-0.75 32 8 12 2900 0.75 48
40WQ12-15-1.5 40 12 15 2900 1.5 48
50WQ20-7-0.75 50 20 7 2900 0.75 62
50WQ10-10-0.75 50 10 10 2900 0.75 54
50WQ20-15-1.5 50 20 15 2900 1.5 51
50WQ15-30-2.2 50 15 30 2900 2.2 51
50WQ17-25-3 50 17 25 2900 3 53
50WQ25-32-5.5 50 25 32 2900 5.5 49
65WQ25-15-2.2 65 25 15 2900 2.2 52
65WQ37-13-3 65 37 13 2900 3 60
65WQ25-30-4 65 25 30 2900 4 58
