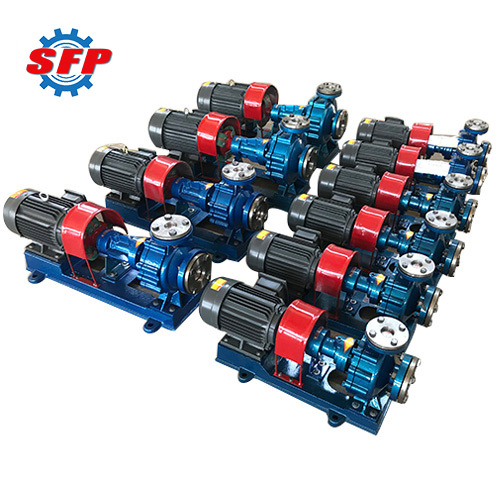

Factory Price RY Series Horizontal Hot Oil Centrifugal Pumps

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

ZX Self-Priming Centrifugal Pump

G Series Electric Screw Pump

Automatic Water Filling Machine for Sale

Mineral Water Filling Machine

ISW Series Pipeline Centrifugal Pump

LPG Gas Transfer Pump

Product Description

Summarize:

RY series hot oil centrifugal pump has the features of reasonable structure, excellent performance and reliable use. It is suitable for transferring lubricating oils containing no solid particles and fibers, temperatures not higher than 300 ° C, viscosity of 5-1500 cst or other liquids similar to lubricating oils and for hydraulic transmission systems. Reduce the speed of the pump, the viscosity of the transport medium can reach 5 * 100000cst. Its corrosion resistance and operating temperature depend on the material of the main parts in contact with the medium.

Model Meaning:
Take RY100-65-200A as an example：
RY --- Hot oil pump
100 --- Inlet diameter of pump body
65 --- Outlet diameter of pump body
200 --- Nominal outer diameter of impeller
A --- Indicates the first cut of the outer diameter of the impeller (D, E indicate modified impeller)

Product Details:

The RY series centrifugal hot oil pump is a high temperature oil pump designed to handle hot oil at temperatures up to 350°C. The impeller is self-balancing by the rear impeller vanes. No cooling of the seal chamber is required. Generally, the pump is driven by an electric motor, which is connected to the pump through a flexible coupling. A flexible gasket coupling can be fitted so that the entire pump support can be dismantled without removing the pump casing and motor from the base plate. The coupling is protected by a cover to prevent external intrusion.

Feature:

1. The basic structure is single-stage single-suction cantilever foot support, pump suction is axial suction, discharge center is vertical, and motor mounted on the same base.
Vertical, and motor mounted on the same base.
2. The pump is supported by double ball bearings, the front end is lubricated with lubricating oil, the back end is lubricated with grease, and there is an oil-conducting pipe in the middle, which can be used to observe the sealing condition and the recovery of heat-conducting oil at any time.
3. The hot oil pump porridge seal of this machine adopts the combination of packing seal and mechanical seal, the packing seal adopts high temperature resistant packing with good thermal adaptability, the mechanical seal adopts hard alloy material with high mechanical strength and good wear resistance, which ensures the sealing performance under high temperature conditions. Imported polytetrafluoroethylene (PTFE) as a lip seal, so that the sealing performance is greatly improved, sealing reliability is 25 times that of rubber seals, and has a strong corrosion resistance.

Product Configuration:

Model Number	RY
Flow Rate	20m3/h
Lift Head	32m
Temperature	-20Cd --350Cd
Speed	2900rpm
Medium	Hot oil without solid particles
Motor	AC power electric motor
Material	Iron

Performance Data:

Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev r/min		Motor
Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev r/min		Power( kw)
20-20-100	1	20	0.09	26		2800	0.75
20-20-125	1.5	22	0.22	30		2800	0.75
25-25-160	3	27	0.53	30		2900	1.5
32-32-160	6	28	0.85	50		2900	1.5
32-32-200	6	50	2.37	45		2900	3.0
40-25-160	10	28	1.72	45		2900	2.2
50-32-160	12.5	30	1.90	57		2900	3
50-32-200	12.5	50	3.78	45		2900	5.5
50-32-200	18	40	3.95	50		2900	5.5
50-32-200A	16	32	3.35	42		2900	4
50-32-250	12.5	80	6.2	44		2900	11
50-32-250	18	70	7.6	45		2900	11
50-32-250A	16	60	6.2	42		2900	7.5
65-50-160	20	32	3.17	55		2900	5.5
65-40-200	25	50	5.87	58		2900	7.5
65-40-200	30	48	6.3	62		2900	7.5
65-40-200A	25	35	4.0	59		2900	5.5
65-40-250	25	80	10.3	53		2900	15
65-40-250A	20	51	5.67	49		2900	7.5
65-40-315	25	125	18.9	45		2900	30
65-40-315A	22.5	100	15.3	40		2900	22
80-50-200	40	52	8.85	64		2900	15
	50	50	9.7	70		2900	15
	60	46	11.0	70		2900	15
80-50-200A	45	40	7.8	63		2900	11
80-50-200B	40	32	6.37	55		2900	7.5
80-50-250	50	80	18.7	58		2900	22
80-50-250	60	72	19.6	60		2900	22
80-50-250A	43	60	12.8	55		2900	18.5
80-50-315	50	125	30.4	56		2900	37
80-50-315A	45	100	23.6	52		2900	30
100-65-200	80	53	16.5	70		2900	22
100-65-200	100	50	18.4	74		2900	22
100-65-200A	94	44	16.00	70		2900	22
100-65-200B	87	38	13.8	65		2900	15
100-65-200C	80	32	11.8	59		2900	15
100-65-250	80	85	28.9	64		2900	37
100-65-250	100	80	32.06	68		2900	37
100-65-250A	95	72	29.00	64		2900	37
100-65-250B	90	65	26.2	61		2900	30
100-65-315	80	130	45	63		2900	75
100-65-315	100	125	50.06	68		2900	75
100-65-315A	95	113	45.23	64		2900	55
125-100-200	200	50	35.40	77		2900	45
125-100-200A	178	40	26.60	73		2900	37
125-100-250	200	70	47.00	80		2900	55
125-100-250A	190	63	41.60	78		2900	55
150-150-200	350	50	60	80		2900	75
